6-Inch Lift Kit – CCD Equipped for 2021-2024 Ford F-150 4WD

Description

Upgrade the performance and capability of your 2021-2024 Ford F150 truck equipped with CCD with the BDS 6-inch suspension lift kit. With this kit, you’ll experience an improved stance, enhanced performance, and greater capability. Say goodbye to limitations and hello to clearance for up to 37″ tires.��

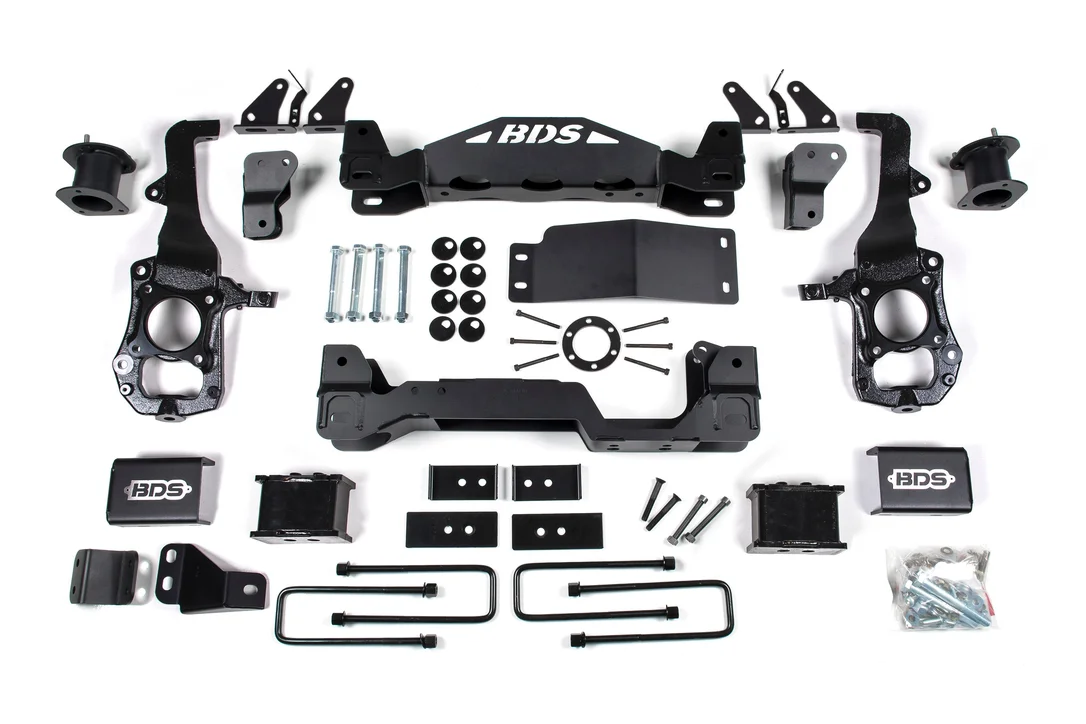

Utilizing BDS’s proven and tested high-clearance design, this kit offers improved ground clearance, strength, and offroad protection while also correcting suspension and steering geometry for optimal on-road handling. The front of the kit includes high-arched 1/4-inch thick steel crossmembers, top mounted strut spacers, multipiece differential relocation brackets, and a skidplate for offroad protection.

At the new taller ride height, steering geometry is corrected with a pair of massive CNC-machined ductile iron steering knuckles. Plus, the provided sway bar relocation brackets, brake line brackets, alignment cam bolts, and hardware make for a complete front suspension lift that can handle

��

High Clearance Crossmembers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.

��

Features & Benefits

• High clearance crossmembers improve strength and offroad capability
• Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility
• Top mounted strut spacers to provide lift and install easily
• Differential skid plate for improved offroad protection
• Rear lift blocks and u-bolts to lift and level the stance
• Shock relocation brackets included to maintain CCD shock system

��

Recommended Tires & Wheels

(Trimming may be required)

• 37 x 12.5 with 18 x 9 and 5.5 in. Backspace
• 37 x 12.5 with 20 x 9 and 5.5 in. Backspace
• 35 x 12.5 with 20 x 9 and 4.5 in. Backspace

6-Inch Lift Kit – CCD Equipped for 2021-2024 Ford F-150 4WD | SKU BDS1961H��
