6-Inch Lift Kit for 2015-2020 Ford F-150 4WD – 5 Inch Block Kit

Description

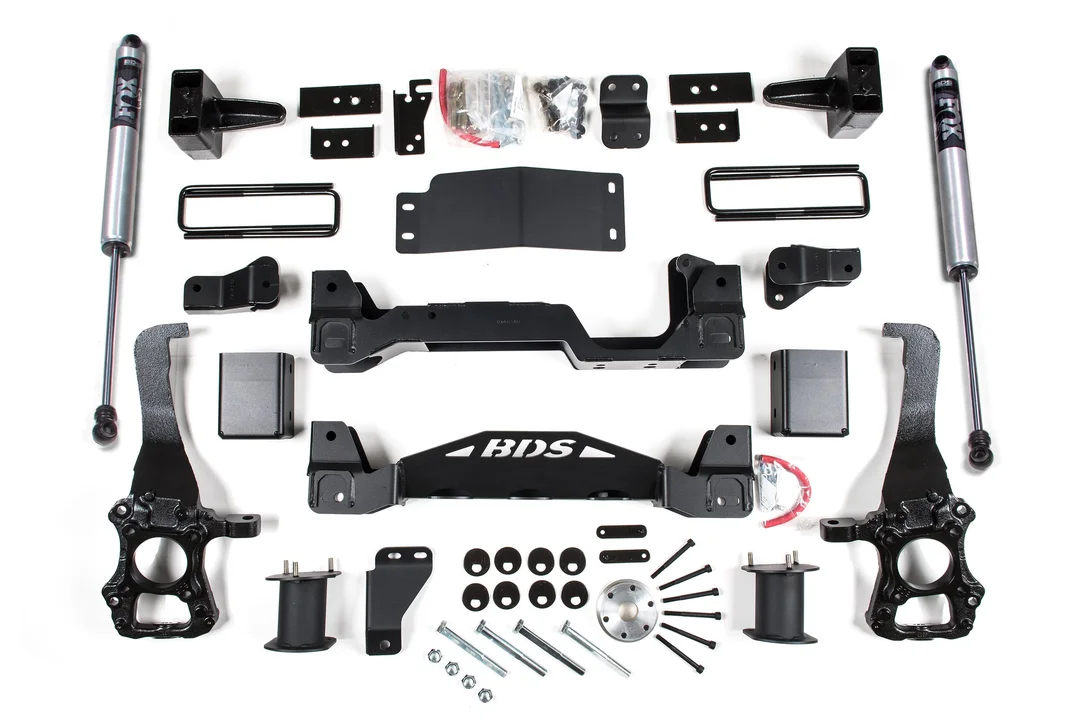

Transform your 2015-2020 Ford F150 4WD truck with the 6-inch suspension lift kit from BDS. This comprehensive kit includes everything needed to boost your truck’s stance, performance, and capability, giving you clearance for up to 37″ tires.��

With BDS’s proven high-clearance design, you can gain improved ground clearance, strength, and offroad protection, while also correcting suspension and steering geometry for optimal on-road handling. The front of the kit features high-arched 1/4-inch thick steel crossmembers, top-mounted strut spacers, multipiece differential relocation brackets, and a skid plate for offroad protection.

To ensure proper steering geometry at the new taller ride height, massive CNC-machined ductile iron steering knuckles are included. The kit also comes with sway bar relocation brackets, brake line brackets, alignment cam bolts, and all necessary hardware for a seamless installation. In the rear, high-strength fabricated lift blocks and longer u-b

s.

High Clearance Crossmembers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

��

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.

��

Rear Lift Option

5 Inch Block Kit

• Level to tail high appearance

4 Inch Block Kit

• Tail low to level stance

Rear Shock Option

NX2 Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

FOX 2.0 Performance Series

• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

��

Features & Benefits

• High clearance crossmembers improve strength and offroad capability
• Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility
• Top mounted strut spacers to provide lift and install easily
• Differential skid plate for improved offroad protection
• Rear lift blocks and u-bolts to lift and level the stance
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

��

Recommended Tires & Wheels

(Trimming may be required)

• 35 x 12.5 with 18 x 9 and 5 in. Backspace
• 37 x 12.5 with 18 x 9 and 5 in. Backspace
• 37 x 12.5 with 20 x 9 and 5.5 in. Backspace

6-Inch Lift Kit for 2015-2020 Ford F-150 4WD |SKU BDS1922FS/BDS1922H/BDS1532FS/BDS1532H
