Description
Bolt-on 3.5″–5.5″ of front lift on a true fabricated spindle — keep your factory ride and handling while clearing up to 35s. Built in the USA for 2014–2018 Chevy Silverado / GMC Sierra 1500 2WD with stamped-steel or cast-aluminum O.E. suspension.
Three lift heights in one kit
- 3.5″ — spindles only
- 4.5″ — add the +1″ spacer (clears 33s)
- 5.5″ — add both spacers (clears 35s with minor trimming)
What this stage includes

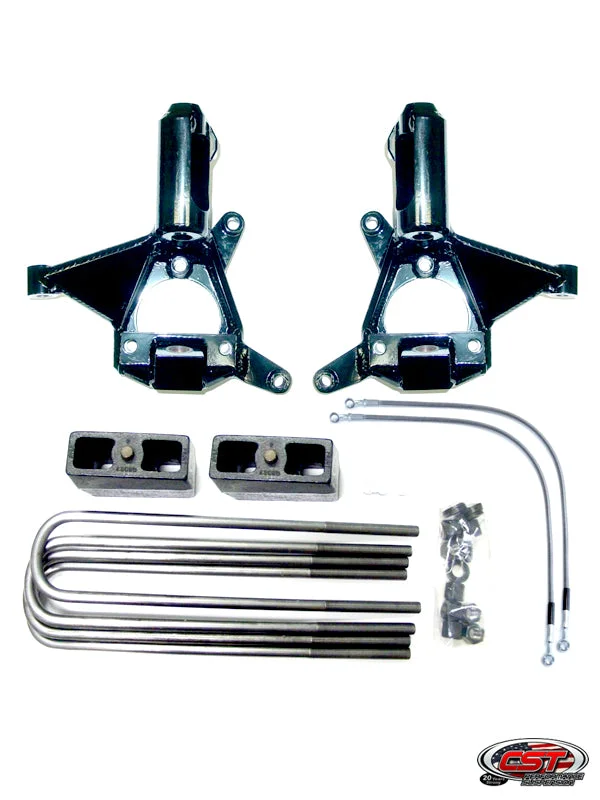

- CST fabricated lift spindles and 2 pairs of lift spacers
- 3″ fabricated rear lift blocks and U-bolt kit
- DOT-approved steel-braided brake lines and all hardware
- Reuses your factory front shocks — rear shocks sold separately
Why CST
- Laser-cut 1/4″+ steel, fully MIG-welded — engineered and built in-house by CST in the USA
- CNC-machined ball-joint tapers for a precise O.E. fit
- Retains OEM ride quality and handling, with minimal track-width change — no bump-steer like import knock-offs
- Up to 5.5″ front / 3″ rear of lift, and fully reversible to stock
Good to know
- Max wheel backspacing: 5″
- Tire-clearance figures are based on 8–8.5″ wide wheels
- Professional installation and alignment recommended
